*4-Pack of 20 inch Versa-Kool Pole-Mounted Circulation Fan for Standard Single-Tube Frames (Model VK20TF-SPM)

$1,649.00 $1,499.00

Reduce heat stress and improve air quality with uniquely designed circulation fans that are available in two styles, pole-mounted and fixed mounted. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don't hear them. You don't see them. You only feel them!

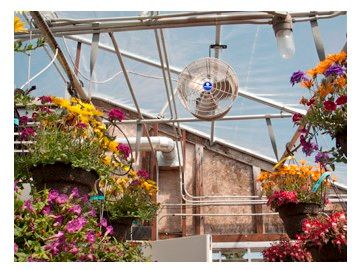

Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating a gentle 'racetrack' air flow pattern needed in greenhouses and other structures to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.

Features and Benefits:

  • Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow
  • Matched high quality motors and blades for maximum efficiency
  • Powder coated steel guards for increased durability and corrosion resistance
  • Hot dipped galvanized guards on VK12-GA and VK20-GA models for even greater rust protection
  • Powder coated steel mounting bracket and power cord included
  • Wide variety of mounting options available for flexible and easy installation
  • Variable speed controls available
  • Misting kits available for even greater cooling
  • Two year warranty
  • Made in the USA

Mount models without OSHA guards seven feet or higher.

20" Versa-Kool Circulation Fan with Standard Pole Mount

Air Velocity (@ 5 times diameter):
1220
BESS Lab Performance Test No.:
12371
Blade Color:
Metallic
Blade Material:
Aluminum
Brand:
Schaefer
CFM (free air):
5470
CFM Calculation Standard:
ANSI/AMCA Standard 230-99
CFM Range (Free Air):
5001 - 10000
CFM/Watt (free Air):
15.6
CFM/Watt Range (free air):
15.1 - 20
Component Certifications:
Motor - UL/CSA
Cord:
Included - Wired
Cord Length (feet):
5
Country of Origin:
US
Description:
Fan Circulation 20" Versa-Kool w/Tapered Guards, Cord & Standard Pole Mount
Diameter (inches):
20
Drive Type:
Direct
Fixed or Portable:
Fixed
Frequency (Hz):
60
Guard Color:
White
Guard Material & Coating:
Powder Coated Steel
Guard Spacing (inches):
1/2 - 1 UL507
Nameplate Amps:
3.8/1.9
Number of Wings:
3
Oscillating:
No
Phase:
1
Power (hp):
1/3
Product Color:
White
Speed Control Compatible:
No
Speeds:
1
Switch:
Not included
VFD Compatible:
Yes
Voltage:
115/230
